Ring spreading plant (Expander)

  • Ring spreading plant (Expander)
  • Baujahr 2010
  • Location Ergolding, Germany

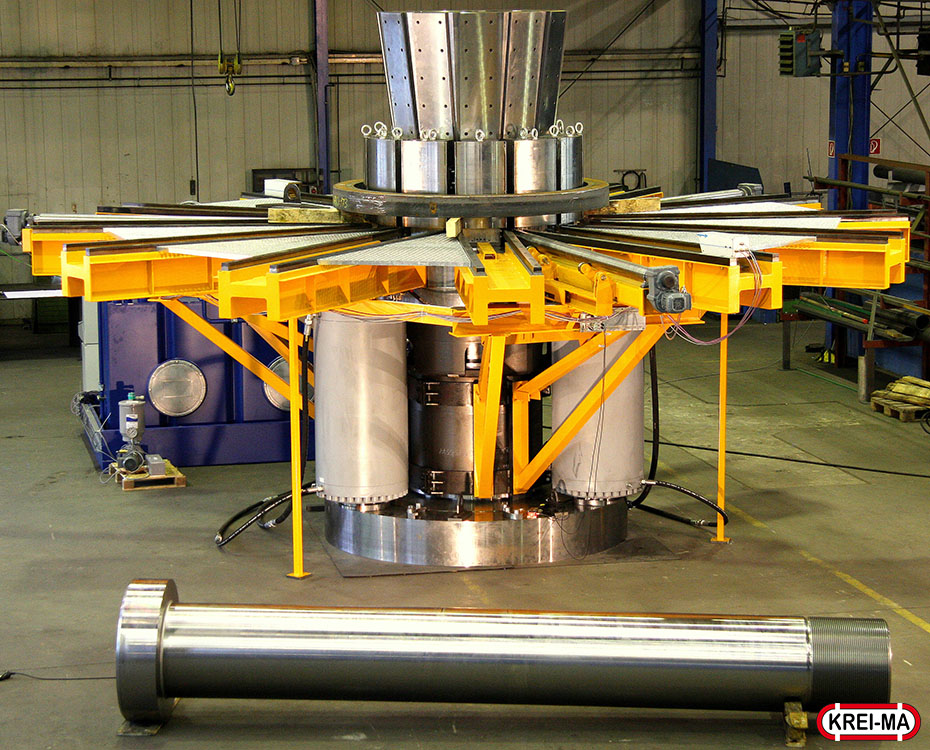

6 004 04 ringspreizanlage expander k09-1169

CLOSE UP

Ring spreading plants (expander) fulfill variety of tasks with their function.
The spreading operation calibrates and improves the dimensional accuracy, shape and strength of the ring.
The expanding forces of over 80.000kN are hydraulically generated and transmitted with a cone-shaped system up to the ring.

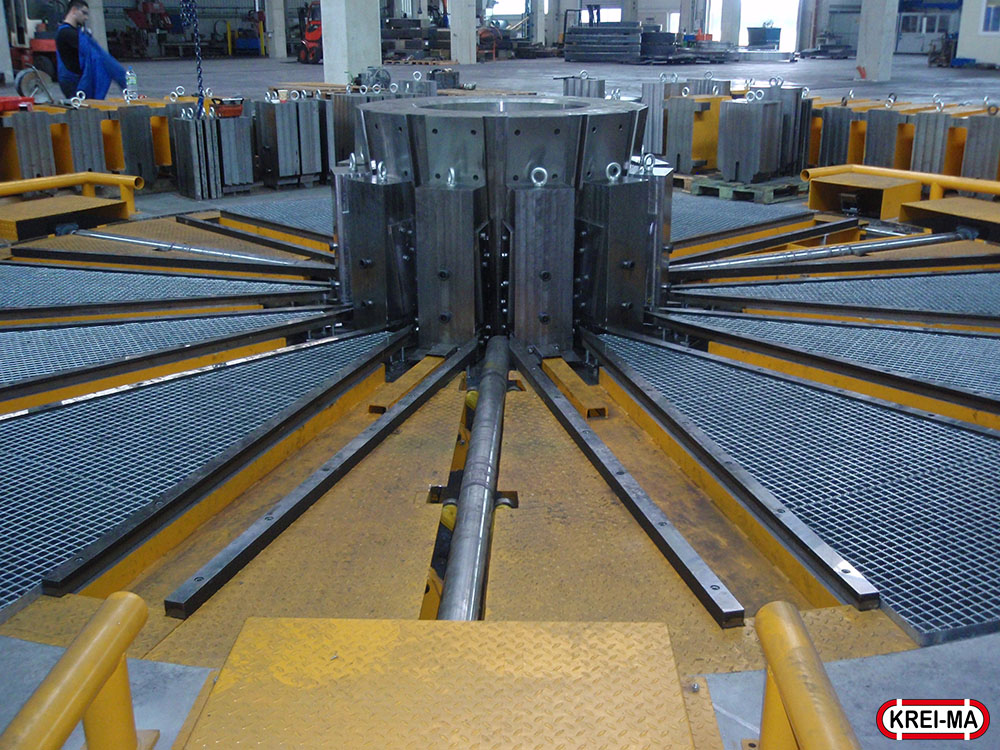

6 004 15 ringspreizanlage expander k09-11696 004 16 ringspreizanlage expander k09-11696 004 02 ringspreizanlage expander k09-1169

image 5image 6image 7
